Our Solar Lighting Product

PROVIDING BEST TECHNOLOGY SOLAR SOLUTIONS

Discover our wide of product tailored to meet your solar street lighting needs, from installation to maintenance and beyond.

No Caption

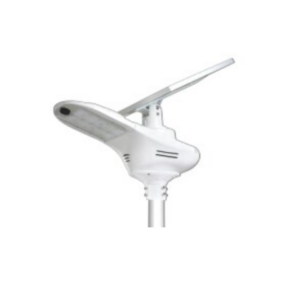

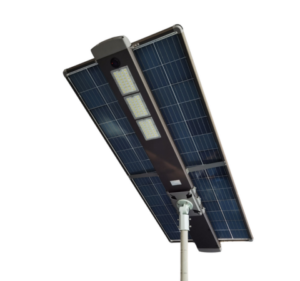

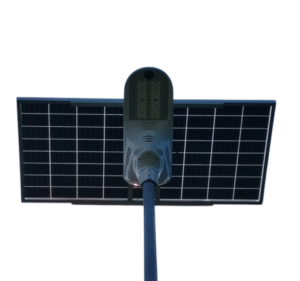

SINAR S100 SOLAR STREET 100W LIGHTS

Material : High Quality Die Cast Aluminium Alloy
Solar Panel : 200W DC36V (Efficient Monocrystallin
Silicon) Double-sided
LED Light : 100W DC36V (Bridgelux LED Chip from
USA), 60pcs LEDs, 8cores/LED, SMD
50x50mil, 3WxLED, 162lm/w
CCT : 6000K (Correllated Color Temperature)
Battery : Grade A Plus ELV LiFePO4 Lithium Batteries, 27AH DC25.6V
Luminous : 16000lm

Working Time : Dusk to Dawn, 12 hours per day, Battery Standby 3 – 4 days,

Protection Grade : IP65
Control Mode : Light / Timing / Mircowaves / Timing + Mircowaves (optional)
Propositional : 7 Meters
Mounting Height
Propositional : 20 – 22 Meters
Distance
Total Weight : Approx. 32kg (Inclusive of Solar Panel)
S SERIES

No Caption

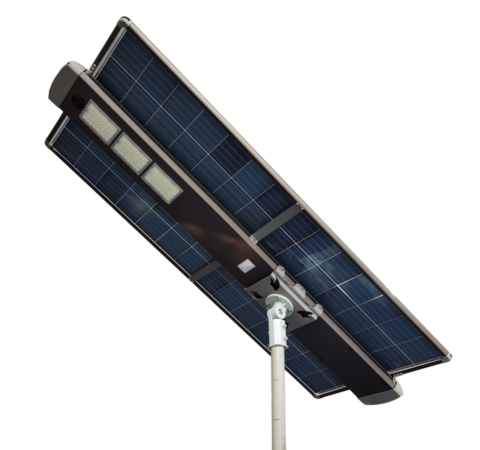

SINAR S120 SOLAR STREET 120W LIGHTS

Material : High Quality Die Cast Aluminium Alloy
Solar Panel : 250W DC36V (Efficient Monocrystallin
Silicon) Double-sided
LED Light : 120W DC36V (Bridgelux LED Chip from
USA), 60pcs LEDs, 8cores/LED, SMD
50x50mil, 3WxLED, 182lm/w
CCT : 6000K (Correllated Color Temperature)
Battery : Grade A Plus ELV LiFePO4 Lithium Batteries, 48AH DC25.6V
Luminous : 19000lm

Working Time : Dusk to Dawn, 12 hours per day, Battery Standby 3 – 4 days,

Protection Grade : IP65
Control Mode : Light / Timing / Mircowaves / Timing + Mircowaves (optional)
Propositional : 9 Meters
Mounting Height
Propositional : 24 – 26 Meters
Distance
Total Weight : Approx. 35kg (Inclusive of Solar Panel)

No Caption

SINAR X120 SOLAR STREET 120W LIGHTS

Material : High Quality Die Cast Aluminium Alloy
Solar Panel : 160W DC36V (Efficient Monocrystallin
Silicon) Double-sided
LED Light : 120W DC36V (Bridgelux/Cree LED Chip from
USA), 64pcs LEDs, 8cores/LED, SMD
50x50mil, 3WxLED, 182lm/w
CCT : 4500k – 6000K (Correllated Color Temperature)
Battery : Grade A Plus ELV LiFePO4 Lithium Batteries, 54AH DC14.6V
Luminous : 19000lm

Working Time : Dusk to Dawn, 12 hours per day, Battery Standby 3 – 4
days, rainy / cloudy

Protection Grade : IP67
Control Mode : Light / Timing / Mircowaves / Timing + Mircowaves (optional)
Propositional : 9 Meters
Mounting Height
Propositional : 24 – 26 Meters
Distance
Total Weight : Approx. 33kg (Inclusive of Solar Panel)

No Caption

SINAR E150 SOLAR STREET 150W LIGHTS

Material : High Quality Die Cast Aluminium Alloy
Solar Panel : 250W DC36V (Efficient Monocrystallin
Silicon) Double-sided
LED Light : 150W DC36V (Bridgelux/Cree LED Chip from
USA), 64pcs LEDs, 8cores/LED, SMD
50x50mil, 3WxLED, 182lm/w
CCT : 4500k – 6000K (Correllated Color Temperature)
Battery : Grade A Plus ELV LiFePO4 Lithium Batteries, 36AH DC25.6V
Luminous : 21000lm

Working Time : Dusk to Dawn, 12 hours per day, Battery Standby 3 – 4 days,

Protection Grade : IP67
Control Mode : Light / Timing / Mircowaves / Timing + Mircowaves (optional)
Propositional : 9-10 Meters
Mounting Height
Propositional : 26 – 28 Meters
Distance
Total Weight : Approx. 36kg (Inclusive of Solar Panel)

No Caption

SINAR E180 SOLAR STREET 180W LIGHTS

Material : High Quality Die Cast Aluminium Alloy
Solar Panel : 300W DC36V (Efficient Monocrystallin
Silicon) Double-sided
LED Light : 180W DC36V (Bridgelux/Cree LED Chip from
USA), 64pcs LEDs, 8cores/LED, SMD
50x50mil, 3WxLED, 210lm/w
CCT : 4500k – 6000K (Correllated Color Temperature)
Battery : Grade A Plus ELV LiFePO4 Lithium Batteries, 48AH DC25.6V
Luminous : 22000lm -23000lm

Working Time : Dusk to Dawn, 12 hours per day, Battery Standby 3 – 4 days,

Protection Grade : IP67
Control Mode : Light / Timing / Mircowaves / Timing + Mircowaves (optional)
Propositional : 10 – 12 Meters
Mounting Height
Propositional : 28 – 30 Meters
Distance
Total Weight : Approx. 38kg (Inclusive of Solar Panel)
E SERIES

Our Technology of Solar Lighting Product

PROVIDING BEST TECHNOLOGY

Discover our wide technology of product tailored to meet your solar street lighting needs, from installation to maintenance and beyond.

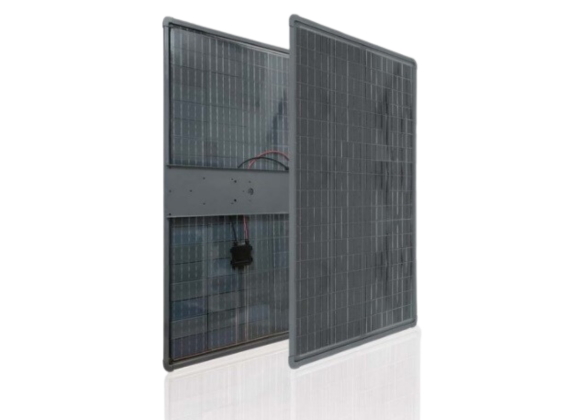

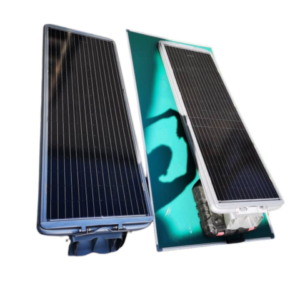

MONOCRYSTALLINE DOUBLE SIDED SOLAR PANEL

– 160W – 400W (Customized)
– Hybrid (Radiation & Heat Energy Harvesting)
– Double Sided Tampered Glass
– 98.6% Conversion Rate
– 22% Efficiency
– Maximum Energy Yield
– Long Lasting Value (15-20years)
– All Weather Solution, Reliable Performance in High Temperature, High Humidity, Salt Mist & Ammonia Resistance.

RELIABLE PRODUCTS TESTED AND PROVEN
IEC61215/IEC61730
ISO 9001 : Environment Management System
ISO 14001 : Environment Management System

HIGH LUMINOUS EFFICIENCY LED

– Bridgelux / Cree (100w – 180w)
– 50x50mil, 8 cores
– 162lm/w – 210lm/w
– Low Power Consumption
– Low Heat Emission
– Life Span : 50,000 hours
– CCT : 4000K -6500K

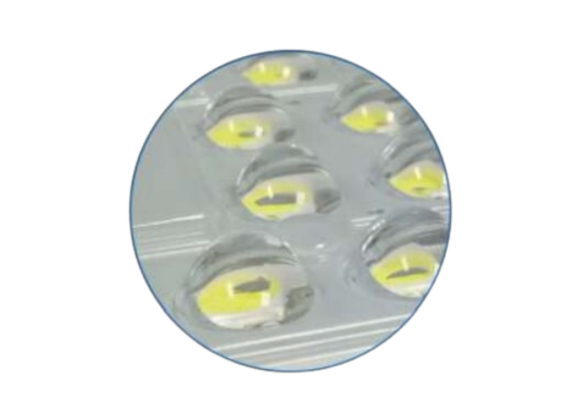

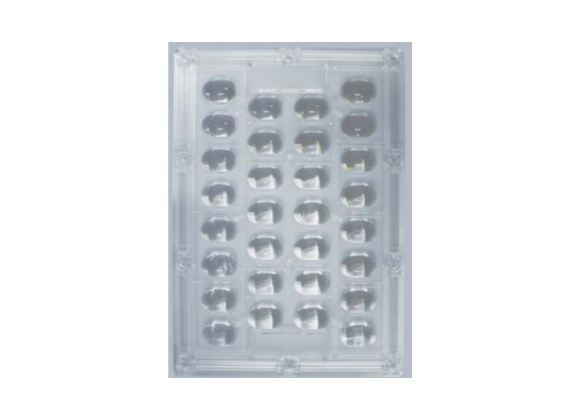

SPECIAL OPTICAL SPREAD LIGHT LENS

– Extraordinary Light Distribution
– Customized Design for Various Applications

GRADE A PLUS ELV LiFeP04 LITHIUM BATTERY SYSTEM

– 27AH TO 60AH, 14.6V TO 27.6V
– Fast Charging
– Hybrid (Radiation/Heat Energy Harvesting)
– Standby : >36 hours, 2-3 days CLOUDY/RAINING
– 2000x CHARGE/DISCHARGE
– Life Span >8 years

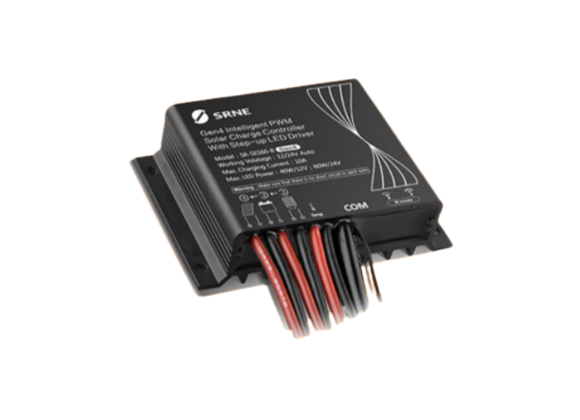

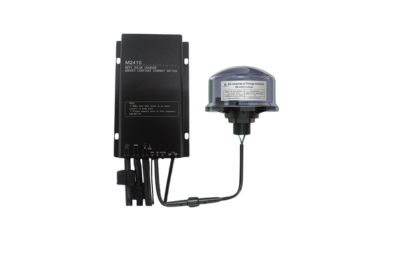

MAXIMUM POWER POINT TRACKING & IOT MODULE

– Solar Charger >98.4% Conversion Efficiency
– Hybrid Controller (Radiation / Heat Harvesting)
– Fast Charger (42 minutes Direct Sun Radiation for 12 hours lighting)
– Control Charge & Discharge, Battery Temperature
– Support GPRS/4G IOT Sim

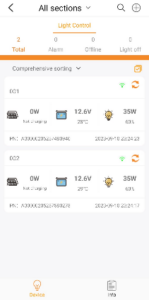

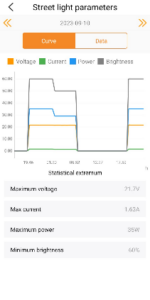

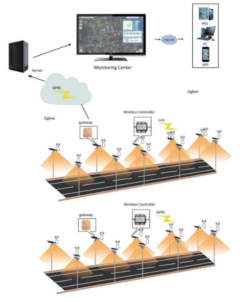

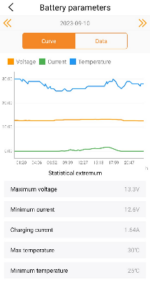

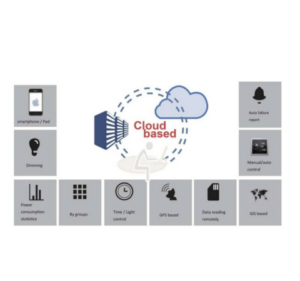

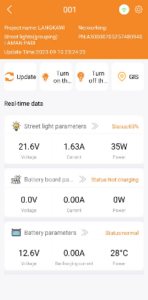

SMART MANAGEMENT SYSTEM

– Real Time Monitoring
– Light Control Capabilities
– Failure Alert Notifications
– Respond Team Notifications
– Authority Management
– Data Analysis
– GIS Mapping
